Photobioreactor | Pilot Scale

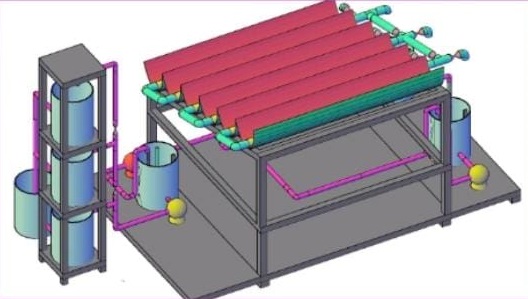

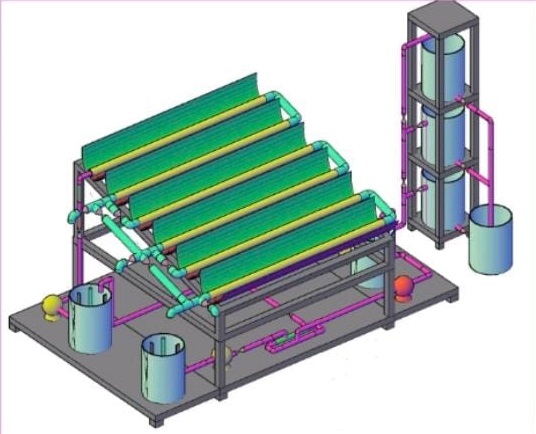

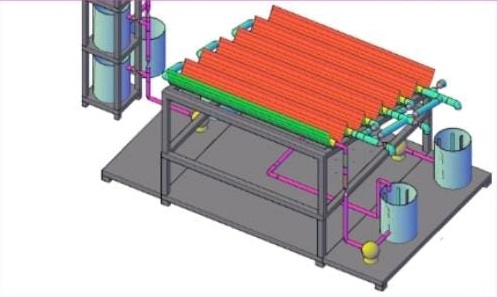

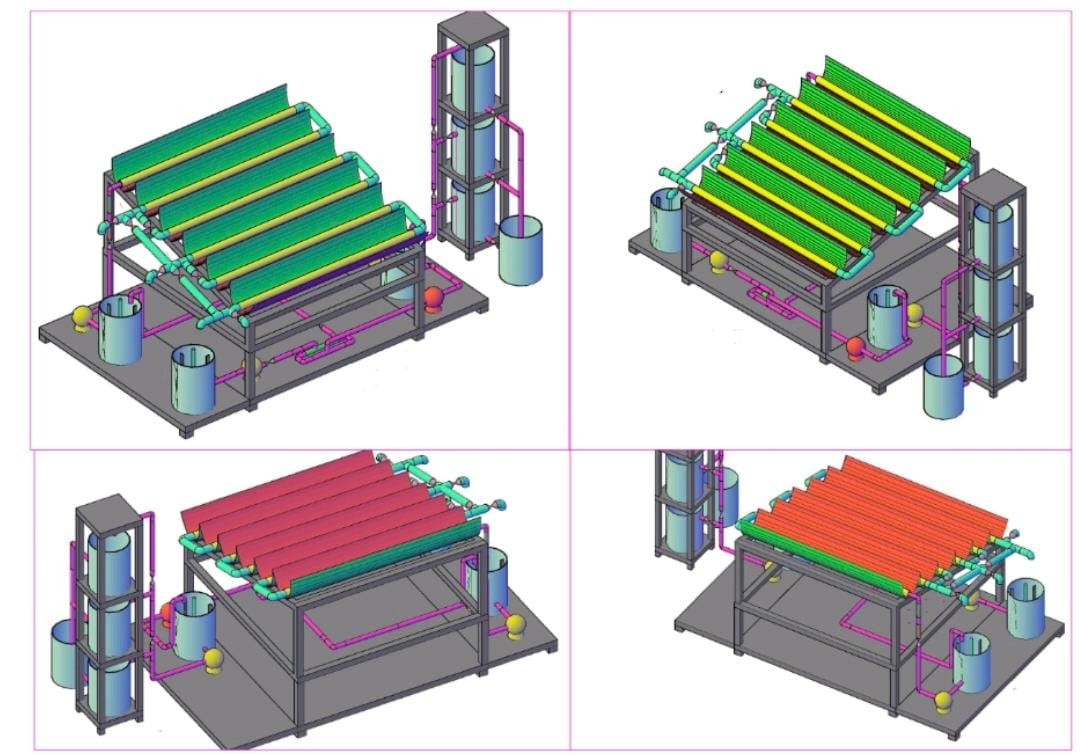

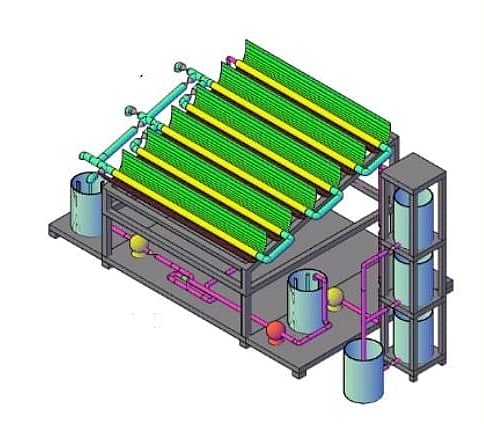

Fermex pilot-scale BioFoton systems are designed & manufactured for the cultivation of targeted micro-algae with a lower risk of contamination to achieve higher biomass yield. Our BioFoton series are flexible in controlling and maintaining optimized reproducible cultivation conditions such as temperature, light, pH, and carbon dioxide concentration for the growth of phototrophic microalgae which are used to produce various types of metabolites, antioxidants, polysaccharides, vitamins, bioactive compounds, and polyunsaturated fatty acids(PUFAs), which are important in pharmaceutical, cosmetic, food, and aquaculture industries. BioFoton pilot-scale series range from 50L-750L, with customized controls. We also make customized Photo-bioreactors according to process and user requirements.
Technical Specifications:
Type: Autoclavable
Design Code: ASME BPE-2019
Temperature: 0 to 150 °C
pH: 2 to 14
MOC: Borosilicate Glass & SS316L
Automation Grade: Manual, Semi-Automatic & Fully Automatic
Surface Finish: Inner surface 420 grit mirror-polished Ra 0.25 to 0.5 μm
Features:
- Better control of CO2/O2 transfer.
- An automatic Illumination system is available.
- Automated controls of process parameters like Aeration temperature, foaming, pH, DO, pressure regulation, gas monitoring, etc.
- A SCADA system with data logging for batch process control is also provided a time-based Illumination system.
- Easy to sterilize, low fouling.
- Good gas mixing.
- Customized Photo Bioreactor is available according to process/user requirements.
- Our Photo Bio-reactors require very less maintenance and are simple to use.
Controls:
- Automatic Temperature Control
- Automatic pH Control
- Automatic DO Cascade Control with RPM & Air Flow Rate
- Automatic Foaming Control
- Aeration Control through rotameter/MFC
- Automatic Nutrient Feeding Control
- Automatic Redox Monitoring & Control
- Automatic Exhaust Gas Pressure Monitoring & Control
- Automatic OD/Turbidity Measurement
- Automatic Agitation Control
- Batch Recipe System
- SMS Alert Facility
- Mobile Application
- Control Panel – Independent / Combined
- Supervisory Control And Data Acquisition (SCADA)
- Illumination (Light) System
